AuxBeam Control Mount ( 1999 - 02 4Runner ) - MMI

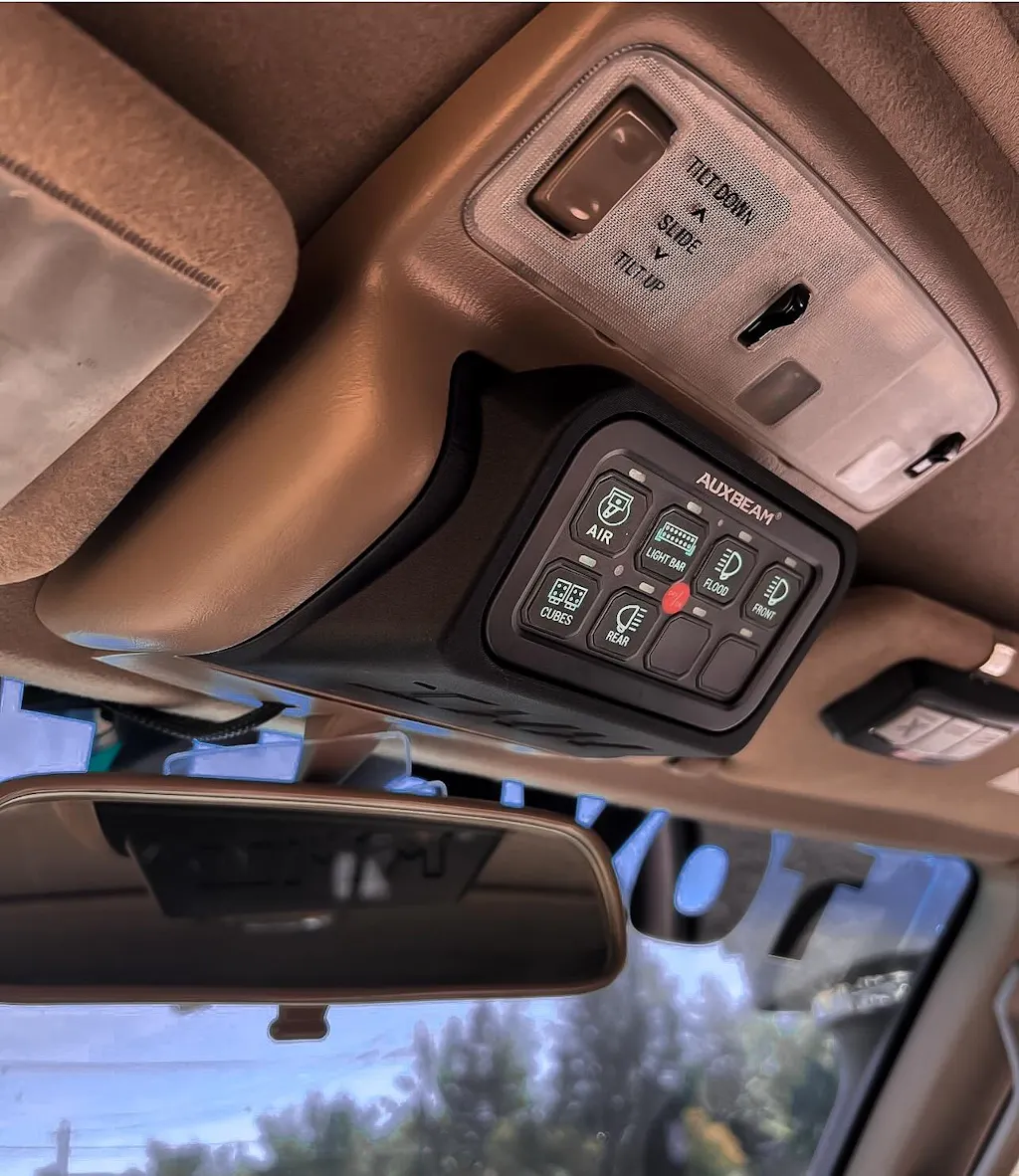

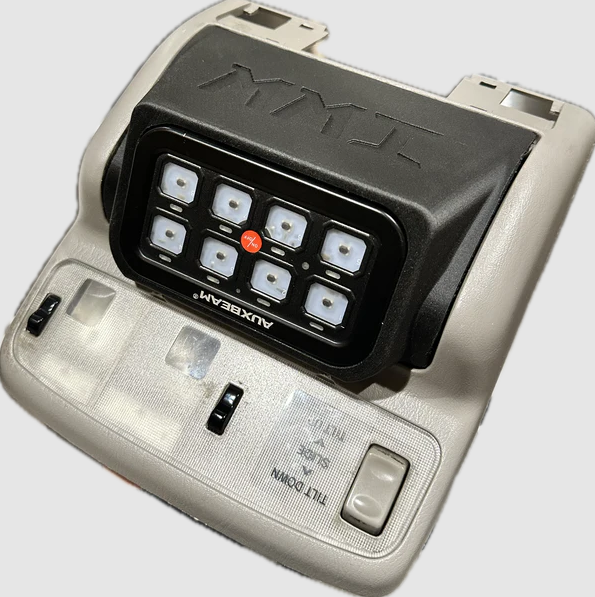

Elevate your off-road adventures with our innovative 3D printed switch mount, designed to seamlessly integrate the AuxBeam control panel into your vehicle's interior. Replacing the factory sunglass bezel, this mount ensures a factory-like feel while providing centralized control for all your essential off-road accessories, including lights, lockers, compressors, and more. Engineered for durability and reliability, this mount enhances both functionality and aesthetics, empowering you to navigate rough terrain with ease and confidence.

Note:  Please be aware, all components are FDM printed which may result in small variations and minor cosmetic blemishes. Rest assured, each part undergoes thorough inspection to uphold the highest quality standards. Thank you for your understanding.

Installation Directions:

1. Remove Factory Bezel:

- Locate the factory bezel.

- Using a small pry tool, carefully remove the lens cover for the lights.

- Remove the screw mounting the bezel with a Phillips screwdriver.

- Slide the bezel from the headliner while being cautious of the electrical connections for the lights.

- Disconnect the electrical connections from the bezel.

2. Remove Factory Sunglass Cubby:

- Using a small punch, push the roll pins out on each side, from the center out.

  **Note:** The roll pins should not take much force to push out and do not have to be removed completely—just enough to allow the factory cubby to be removed.

3. Prepare MMI Mount for Installation:

- Route the cable for your AuxBeam control panel through the channel in the mount.

- Attach the AuxBeam controller to the mount using the hardware provided by AuxBeam.

- Once the controller is secured, apply the felt by exposing half of the adhesive and lining it up with the straight edge of the mount.

- Once aligned, expose the rest of the adhesive and evenly and carefully lay the rest of the felt.

**Note:** The felt is designed to cover the wire coming from the controller.

4. Install MMI Mount into Factory Bezel:

- Start by pushing one of the pins roughly halfway towards the center of the bezel.

- Install the mount at a slight angle, using the pin to help align the mount.

- Once the mount is in place, push the opposite pin into the mount.

- Ensure the pin is fully inserted and sits flush with the factory bezel.

5. Reinstall the Factory Bezel:

- Follow step 1 in reverse order to reinstall the factory bezel.

**Note:** While reinstalling the factory bezel be sure to route the AuxBeam control harness.

6. Enjoy:

With the switch mount securely installed and all components properly connected, you are now ready to enjoy enhanced control over your off-road accessories. Hit the road and take your off-road adventures to the next level with ease and convenience.
