Fits 2003-2007 Toyota Land Cruisers and 2003-2007 Lexus LX470

Adding a high clearance front bumper or 35"+ plus tires on your 100 series? It's time to move your plastic washer fluid tank out of the wheel well and to a safe spot under the hood.

These relocated tanks are a made from .100" thick 5052 aluminum right here in Grand Junction, Colorado. Fully tig welded and finished with a semi gloss black powder coat.

They install using factory holes behind the passenger headlight for a quick bolt on installation. All you need to do is remove your two pumps and gaskets from the old tank and swap them into the new one, then extend the wiring harness and hoses from the driver side to the passenger side.

*LX470 Owners- these tanks do not have a hole for the fluid level sensor. Unplugging the sensor's wiring turn off the light and disable it for future use.

Please select from the drop-down menu if you'd like to include the optional hardware kit for installation. Some of you might already have these parts laying around so I thought I could make it optional to save some money.

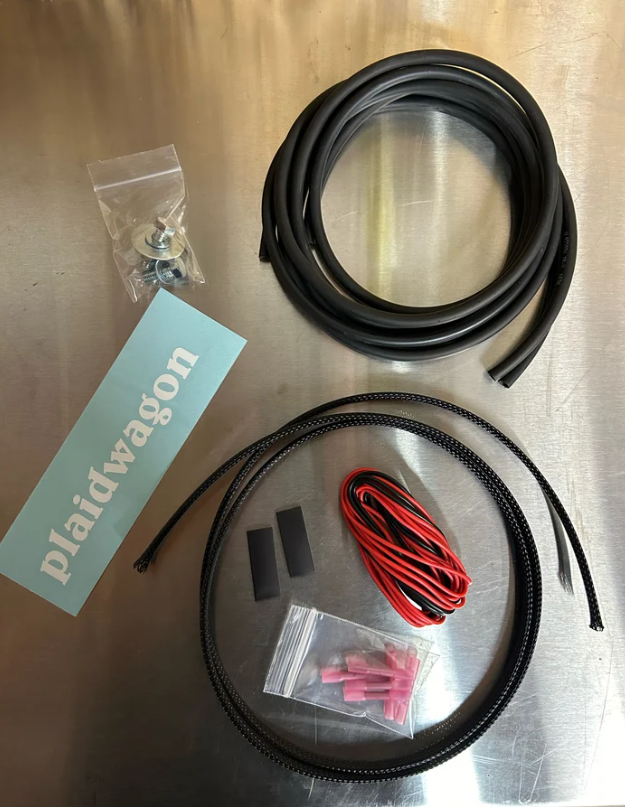

Installation kit includes:
-M8x1.25 hardware for the two mounting tabs
-18 GA wires (3 total- 2 red, 1 black- 6' long)
-1/2" braided loom with heat shrink for the ends - 6' long
-6 18 GA butt connectors
-4mm (5/32") rubber hose (2 lengths 6' long)

Free shipping within the lower 48 states.

Please allow 2-5 weeks for the lead time as I'm just getting these in motion and still building them to order.
